Although a quality floor spring is designed for long-term operation, its performance still depends on correct installation, regular inspection and timely adjustment. Small problems such as loose fittings, hydraulic oil leakage, water penetration or door misalignment can eventually damage the floor spring, pivot system and surrounding door components.

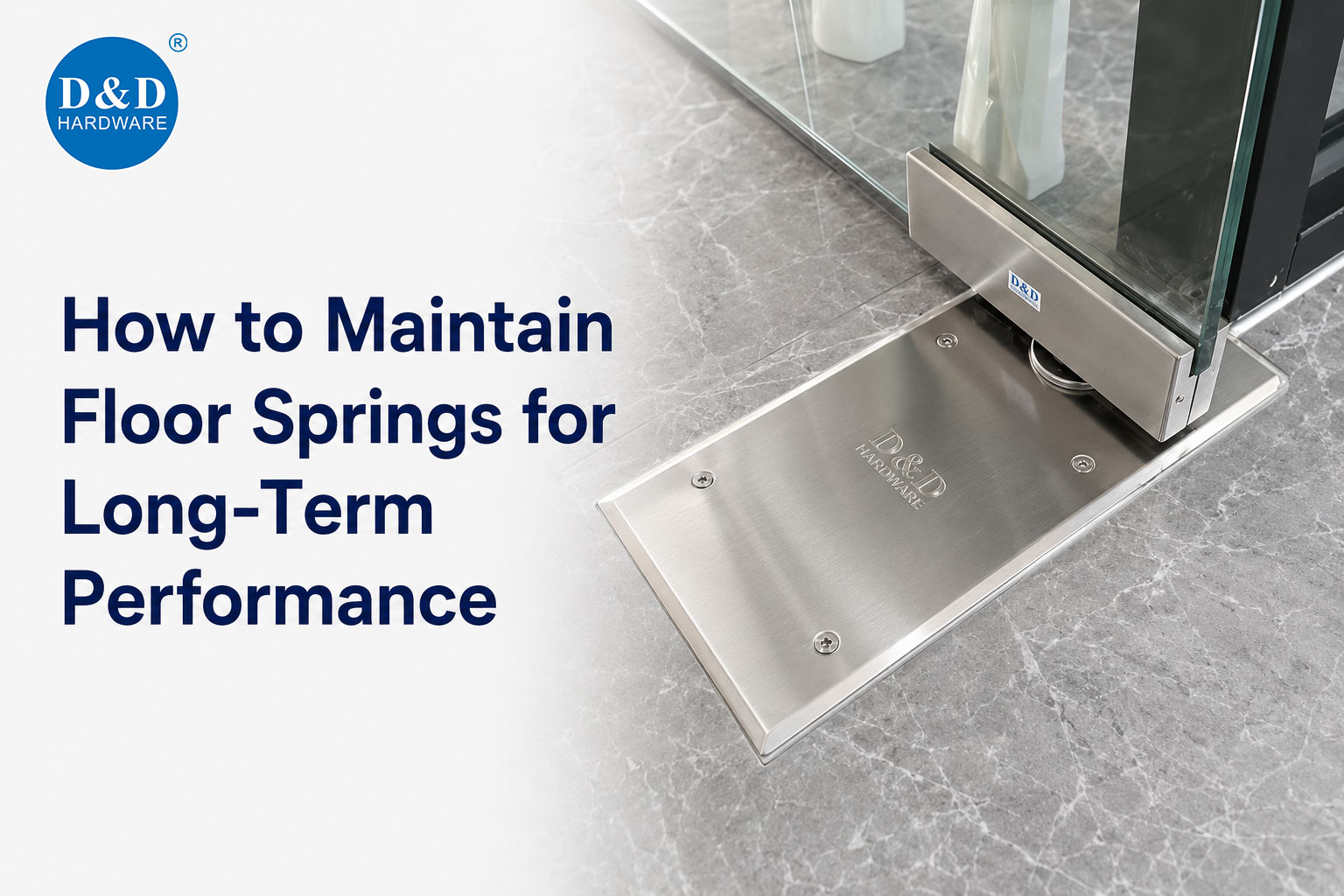

This floor spring maintenance guide explains how to inspect, clean, adjust and protect a floor spring for smooth operation and a longer service life.
Why Is Floor Spring Maintenance Important?
A hydraulic floor spring contains a spring mechanism, hydraulic fluid, control valves, a spindle and other precision components. These parts work together to regulate the door’s opening resistance, main closing speed and final latching action.
Because the unit is installed below the finished floor, it may be exposed to water, dust, sand, cleaning chemicals and construction debris. Heavy doors, incorrect alignment, frequent use and excessive opening angles can also place additional stress on the spindle and pivot components.
Regular maintenance helps preserve the intended performance of the complete door system. It can also identify minor problems before they develop into expensive failures.
Proper floor spring maintenance can:
- Maintain smooth and controlled door movement
- Prevent the door from slamming or remaining open
- Detect hydraulic oil leakage at an early stage
- Reduce wear on pivots, arms and door fittings
- Protect the floor spring body against moisture and corrosion
- Maintain reliable closing and latching performance
- Reduce unexpected repair and replacement costs
- Extend the service life of the complete door assembly
The floor spring itself may require minimal internal maintenance, but the complete door assembly must still be inspected regularly. The top pivot, bottom fitting, floor spring body, cover plate and door alignment all affect its performance.
Recommended Floor Spring Maintenance Schedule
The appropriate service interval depends on the door weight, opening frequency, installation environment and project requirements. A busy hotel entrance operating throughout the day normally needs more frequent attention than a low-traffic internal office door.
The following schedule can be used as a general reference:
| Maintenance interval | Recommended inspection |
| Weekly or monthly | Observe the closing speed, latching action, door alignment and unusual sounds |
| Every 3 months | Clean the cover plate and check accessible screws, pivots and fittings |
| Every 6 months | Inspect for hydraulic leakage, corrosion, water entry and unstable door movement |
| Every 12 months | Arrange a complete inspection by a qualified door hardware technician |
| After an impact | Immediately check the door alignment, spindle, pivots and floor spring operation |
| After construction work | Remove debris and inspect the cement box, fittings and cover plate |
External entrances, heavy doors, high-traffic openings and safety-critical door systems may require shorter maintenance intervals. Always follow the instructions supplied with the selected D&D floor spring model.
1. Inspect the Door’s Opening and Closing Movement
Start by opening the door through its normal operating range and allowing it to close without assistance. The movement should be smooth, controlled and consistent. The door should not stop unexpectedly, accelerate suddenly or slam during the final stage of closing.
Observe the complete movement rather than only checking whether the door eventually closes. A change in speed or resistance can be an early indication of incorrect adjustment, mechanical obstruction, misalignment or hydraulic leakage.
Warning signs may include:
- The door closes unusually fast or slowly
- The door stops before reaching the frame
- The door fails to engage the latch
- The door rubs against the floor or frame
- Movement is uneven at different opening angles
- The door makes clicking, scraping or grinding sounds
- The door requires more opening force than before
- The door moves excessively after reaching the closed position
These symptoms do not always mean that the hydraulic floor spring has failed. A loose top pivot, worn bottom fitting, damaged patch fitting, incorrect door clearance or strong air pressure can produce similar problems. The complete door system should be inspected before adjusting or replacing the floor spring.
2. Clean the Cover Plate and Surrounding Area
Dust, sand and other abrasive particles can collect around the floor spring cover plate. If they enter the moving areas, they may accelerate wear or interfere with normal door movement.
Clean the stainless steel cover plate with a soft cloth and a suitable non-abrasive cleaner. Avoid steel wool, strong acids and aggressive chloride-based cleaning chemicals because they can damage the finish and increase the risk of corrosion.
Pay attention to the gaps between the cover plate and the finished floor. Remove dirt carefully without pushing it deeper into the cement box. If the cover plate is loose, bent or damaged, repair or replace it promptly.
Do not pour water, cleaning liquid or lubricant into the floor spring box.
3. Protect the Floor Spring Against Water Entry
Moisture is a major risk for floor-mounted door hardware, particularly at external entrances and in areas where floors are washed frequently. Water can enter through damaged sealant, an incorrectly fitted cover plate or incomplete floor finishing.
Once inside the cement box, moisture may cause corrosion around the floor spring body, fixing screws, adjustment valves and spindle. Long-term water exposure can also make future servicing or replacement more difficult.
Inspect the perimeter of the cover plate and the surrounding floor finish. If sealant is cracked, missing or separated, it should be renewed with a compatible material. The cement box must remain correctly positioned, protected and free from standing water.
For coastal, humid or chemically exposed environments, suitable corrosion-resistant hardware and regular inspections are especially important.
4. Check for Hydraulic Fluid Leakage
Hydraulic fluid allows the floor spring to control the door’s closing movement. Oil around the spindle, adjustment valves, cover plate or floor spring body may indicate a damaged seal or internal component.
Common signs of hydraulic leakage include:
- Visible oily residue around the floor spring
- A door that suddenly closes much faster
- Closing speed that changes without adjustment
- Reduced resistance during door movement
- A floor spring that cannot maintain a stable setting
Clean the visible oil and observe whether it returns. If leakage continues, the unit should be inspected by a qualified technician.
Changing the valve setting will not repair a damaged hydraulic seal. Opening the sealed body or adding an unspecified fluid may permanently damage the product and create a safety risk. In many cases, replacing a leaking floor spring body is more reliable than attempting an unauthorized internal repair.
5. Inspect the Top Pivot and Bottom Fitting
The floor spring controls the door, but the top pivot and bottom fitting support and guide its movement. Loose, worn or incorrectly installed fittings can cause the door to drop, tilt or move out of alignment.
Check the accessible fasteners and confirm that the top pivot, bottom strap, arm assembly and floor spring body remain securely attached. There should be no unusual movement between the door and its fittings.
For frameless glass doors, inspect the patch fittings and the areas where the hardware contacts the glass. Look for loose components, displaced protective materials, damaged gaskets or signs that the glass has moved inside the fitting.
Do not overtighten glass door fittings without following the specified torque requirements. Excessive force can damage the glass or fitting components. If the door is large or heavy, maintenance should be completed by an experienced installer using suitable lifting equipment.
6. Check Door Alignment and Clearances
Incorrect door alignment is one of the most common causes of floor spring problems. Stand back and examine the gaps around the door. The clearances should be reasonably even, and the door should not touch the floor, frame or adjacent glass panel during operation.
Door misalignment can result from:
- Loose top or bottom fittings
- Worn pivot components
- Incorrect spindle height
- Building or floor movement
- Excessive door weight
- Impact damage
- Poor initial installation
- Movement inside glass patch fittings
A misaligned door places uneven pressure on the spindle and internal spring mechanism. It can also prevent the door from closing or latching correctly.
Correct the mechanical alignment before adjusting the hydraulic valves. Changing the closing speed to compensate for a rubbing or dropped door only hides the original problem and may increase wear.
7. Adjust the Closing Speed Carefully
Many floor springs provide separate adjustments for the main closing speed and final latching speed. Depending on the model, additional functions may include backcheck, delayed closing, hold-open or adjustable spring power.
Before making an adjustment, identify the correct control valve in the D&D product instructions. Valve positions and adjustment directions can vary between models.
Make adjustments in very small increments, usually no more than one-eighth of a turn at a time. Test the door after each adjustment and observe its movement through the complete closing cycle.
The main closing speed should be controlled enough to allow users to pass safely. During the final closing stage, the door should have enough movement to overcome latch resistance and reach the fully closed position without slamming.
Never remove an adjustment valve or turn it beyond its permitted range. Excessive adjustment may release hydraulic fluid, damage the internal seals or cause the door to close uncontrollably.
8. Confirm Reliable Latching Performance
A door that reaches the frame but does not engage the latch may have insufficient latching speed, excessive frame resistance or incorrect alignment. Air pressure from ventilation systems can also prevent the door from closing completely.
Before increasing the latching speed, check whether the latch, lock, seal or frame is creating unnecessary resistance. The door should move freely without rubbing or binding.
For fire-rated doors, reliable self-closing and positive latching are especially important. Adjustments must not prevent the door from closing completely. Any work on a fire-rated assembly should follow the door manufacturer’s instructions, the approved hardware configuration and applicable local regulations.
Do not disable the self-closing function of a fire door.
9. Inspect the Hold-Open Function
Some floor springs include a mechanical hold-open function that keeps the door at a predetermined angle. Test the hold-open position carefully and confirm that the door releases normally when pulled or pushed out of that position.
A mechanical hold-open floor spring is generally intended for applications where holding the door open is permitted. It should not be installed on a fire-rated door unless the complete hold-open arrangement is specifically approved for that door system and complies with local fire-safety requirements.
If the hold-open angle changes or becomes difficult to engage, inspect the door alignment and fittings before attempting adjustments.
10. Protect the Door from Excessive Opening
Every floor spring has an intended maximum opening angle. Strong wind, trolleys, impact or aggressive use may force the door beyond this range and damage the spindle, internal mechanism, glass fittings or surrounding structure.
Install a suitable mechanical door stop where required. The stop should be positioned correctly so that it limits the door before excessive force reaches the floor spring.
Some floor springs provide backcheck to help control rapid opening. However, backcheck should not automatically be treated as a replacement for a mechanical door stop. The correct protection method depends on the floor spring model, door construction and project conditions.
11. Avoid Overloading the Floor Spring
Every floor spring is designed for a specified range of door widths and weights. Installing an undersized model on a heavy or wide door can cause weak closing, excessive internal stress and premature failure.
Door width is important because a wider door creates greater leverage on the spindle. Two doors with the same weight may therefore require different floor spring power sizes if their widths are different.
When selecting or replacing a floor spring, consider:
- Door material
- Door width and height
- Approximate door weight
- Single-action or double-action operation
- Required opening angle
- Traffic frequency
- Indoor or outdoor installation
- Wind and building air pressure
- Hold-open or non-hold-open requirements
- Fire-rated door requirements
- Required closing and latching performance
Never use the door to support heavy objects or prevent it from moving with unsuitable wedges. These practices can overload the floor spring and door fittings.
12. Consider Temperature and Air-Pressure Changes
Hydraulic closing performance can be affected by significant temperature changes. External entrances may operate differently during hot summers, cold winters or sudden weather changes.
Wind, air-conditioning systems and pressure differences between rooms can also affect door movement. If the door performs normally at some times but fails to close under certain conditions, investigate the surrounding environment before repeatedly changing the valve settings.
A setting that works during calm weather may not be suitable when strong wind acts on the door. Similarly, increasing the closing speed to overcome temporary air pressure could cause the door to slam when the pressure changes.
For demanding commercial entrances, choose a floor spring designed for the actual door size, operating frequency and environmental conditions.
Common Floor Spring Problems and Solutions
| Floor spring problem | Possible cause | Recommended action |
| Door slams shut | Incorrect valve setting or hydraulic leakage | Check for oil and adjust only according to the product instructions |
| Door closes too slowly | Valve setting, low temperature, obstruction or misalignment | Check the environment and door clearance before adjustment |
| Door does not close completely | Frame friction, air pressure, weak latching action or incorrect power | Remove mechanical resistance and inspect the latching setting |
| Door rubs against the floor | Loose fittings, worn pivots or incorrect spindle height | Realign the door and inspect the pivot components |
| Oil appears near the cover plate | Damaged hydraulic seal or valve | Arrange professional inspection and consider replacement |
| Door makes unusual noise | Loose fittings, debris or worn pivot components | Clean and inspect the complete pivot system |
| Door opens too far | Missing door stop or unsuitable installation | Install or reposition an appropriate mechanical door stop |
| Floor spring area is corroded | Water entry, damaged sealant or harsh environment | Eliminate moisture and replace damaged components |
| Door is difficult to open | Incorrect spring power, mechanical friction or misalignment | Inspect the door and verify that the floor spring is correctly selected |
| Hold-open function is unstable | Misalignment, wear or incorrect setting | Check the fittings and consult the model instructions |
What Should You Avoid During Floor Spring Maintenance?
Some maintenance mistakes can cause more damage than the original problem. A hydraulic floor spring is a precision-controlled device and should not be opened or modified without suitable technical knowledge.
Do not remove adjustment valves, dismantle the sealed hydraulic body or refill the unit with an unspecified oil. Avoid applying general-purpose spray lubricant around the spindle unless the D&D product instructions specifically permit it. Excess lubricant can attract dust and contaminate surrounding components.
You should also avoid:
- Forcing a door that is rubbing or jammed
- Making large valve adjustments
- Overtightening glass door fittings
- Using incompatible replacement arms or pivots
- Ignoring visible hydraulic leakage
- Allowing water to remain inside the cement box
- Forcing the door beyond its designed opening angle
- Modifying approved fire-door components
- Disabling the self-closing function of a fire-rated door
Where the floor spring is part of a fire, smoke-control, security or emergency-exit door assembly, servicing must preserve the required performance of the complete opening.
When Should a Floor Spring Be Replaced?
Not every floor spring problem requires replacement. Loose fittings, minor alignment problems, dirt accumulation and incorrect valve settings can often be corrected. However, replacement should be considered when the unit can no longer provide stable and reliable door control.
A floor spring may need to be replaced if:
- Hydraulic fluid continues to leak
- The body or spindle is severely corroded
- The spindle is visibly damaged
- The closing speed cannot be controlled
- The door movement remains unstable after adjustment
- Internal spring power has significantly weakened
- Replacement parts are unavailable or incompatible
- The existing unit is unsuitable for the door weight or width
- The required door function has changed
- The floor spring has suffered serious impact damage
Before selecting a replacement, record the existing floor spring dimensions, spindle type and installation position. Also confirm the door width, approximate weight, opening direction and required functions.
A replacement unit should not be selected only because it fits inside the existing cement box. It must also provide the correct power, control functions and performance for the door.
Information Required When Selecting a Replacement Floor Spring
Providing complete project information helps the supplier recommend a more suitable model and reduces the risk of installation problems.
Prepare the following details:
| Required information | Why it matters |
| Door material | Glass, metal and wooden doors may use different fittings |
| Door width and height | Door dimensions affect leverage and operating force |
| Approximate door weight | Determines the required floor spring capacity |
| Door action | Confirms whether single-action or double-action operation is needed |
| Opening angle | Helps determine the correct stop and hold-open options |
| Installation environment | Identifies moisture, wind, corrosion and temperature requirements |
| Traffic frequency | Indicates whether a heavy-duty solution is required |
| Fire-door requirement | Determines whether approved self-closing hardware is necessary |
| Existing product dimensions | Helps evaluate replacement compatibility |
| Required functions | May include hold-open, backcheck or adjustable speed |
Photographs of the existing floor spring, cover plate, door fittings and installation area can also help D&D evaluate the application.
How to Extend the Service Life of a Floor Spring
Long-term floor spring performance depends on more than occasional valve adjustment. The complete door system must remain correctly aligned, securely fixed and protected from environmental damage.
To extend the floor spring’s service life:
- Select the correct floor spring according to door width and weight.
- Ensure that installation is completed by an experienced technician.
- Maintain correct door alignment and clearances.
- Keep the cover plate and surrounding floor clean.
- Prevent water from entering the cement box.
- Use an appropriate mechanical door stop.
- Inspect pivots and fittings regularly.
- Respond quickly to oil leakage or unstable closing.
- Use compatible replacement parts.
- Follow the relevant D&D installation and adjustment instructions.
Routine inspection is usually more cost-effective than waiting for a door to become unsafe or unusable. Early attention to a loose pivot, damaged seal or minor alignment problem can prevent damage to several related components.
Choosing a Reliable Floor Spring for Commercial Projects
Effective maintenance begins with correct product selection. A commercial floor spring should be selected according to door material, width, weight, operating frequency, environmental conditions and required functions—not only its purchase price.
D&D Hardware has more than 18 years of experience manufacturing and supplying architectural door hardware for metal, wooden, glass and fire-rated door systems. Our floor spring solutions support controlled door movement in hotels, hospitals, offices, shopping centres, educational institutions and other commercial buildings.
D&D can assist distributors, contractors, architects and project buyers with floor spring selection, door weight matching, functional configuration and compatible door accessories. Depending on the project, requirements may include adjustable closing speed, latching-speed control, single-action or double-action operation and hold-open or non-hold-open functions.
For product recommendations, provide D&D with the door dimensions, approximate weight, door material, operating frequency and installation environment. This information allows our team to help you select a suitable floor spring and complete door hardware solution.
Floor Spring Maintenance FAQs
How often should a floor spring be maintained?
A basic operational inspection can be completed monthly, while a more detailed inspection is generally recommended every six months. High-traffic, external and safety-critical doors may require more frequent servicing.
Why is my floor spring door closing too fast?
The closing-speed valve may be incorrectly adjusted, or the floor spring may be losing hydraulic fluid. Check for visible oil before making small adjustments according to the D&D product instructions.
Can I add oil to a hydraulic floor spring?
Do not add oil to the sealed hydraulic body. Using an unspecified fluid or opening the unit may damage its internal mechanism and affect safe door operation.
Can a leaking floor spring be repaired?
The answer depends on the location and severity of the leakage. Persistent leakage from the sealed hydraulic mechanism usually requires professional inspection and may indicate that replacement is the most reliable solution.
Why does the door stop before closing completely?
The door may be rubbing against the floor or frame, the latching speed may be too low, or building air pressure may be resisting the closing movement. Check for mechanical obstruction and misalignment before changing the valve setting.
Can I adjust a floor spring myself?
Minor adjustments may be possible if you have the correct product instructions and suitable tools. Heavy doors, glass doors and fire-rated assemblies should be serviced by an experienced door hardware technician.
How long does a floor spring last?
There is no single service-life figure for every installation. Product quality, door size, traffic frequency, alignment, water exposure and maintenance all influence longevity. Correct selection and regular inspection can significantly reduce premature failure.
Can a hold-open floor spring be used on a fire door?
A mechanical hold-open model should not be used on a fire-rated door unless the complete system is specifically approved for that application and complies with applicable local fire-safety requirements.
Conclusion
Floor spring maintenance is essential for keeping commercial doors safe, smooth and reliable. Regularly inspecting door movement, alignment, fittings, hydraulic leakage and water protection can identify problems before they affect the complete door system.
Closing-speed adjustments should always be small and model-specific. Mechanical problems such as a dropped door, worn pivot or frame obstruction must be corrected before changing the hydraulic settings. When leakage, severe corrosion or unstable operation cannot be resolved safely, replacement is usually the most dependable option.
Correct product selection is equally important. By matching the floor spring to the door width, weight, traffic level and installation environment, building owners and contractors can achieve more reliable performance and reduce long-term maintenance costs.
Contact D&D Hardware for professional support in selecting floor springs and complete architectural door hardware solutions for your commercial project.
David Jian:
Tel / WhatsApp / Wechat:+86-139 2903 7292
